Brake Controllers

Powerful Dual Sensor Trailer Brake Controller for Directly Proportional Smooth Trailer Braking

For Class TC Trailers (3500kg - 10,000kg)

FEATURES:

• Designed exclusively for the NZ market
• Certified for use on class TC trailers (3500kg - 10,000kg)
• Advanced brake system diagnostics
• Fits any tow vehicle with Hydraulic or Air brake systems
• Dual pressure sensors constantly monitor both tow vehicle circuits for 100% truly proportional smooth trailer braking
• Temporary park brake mode (soon to be required by NZ law for class TC trailers)
• The harder the driver presses the brake pedal, the harder the trailer brakes will be applied, at any speed, even in reverse
• Compatible with all Electric or Hydraulic trailer brakes up to 4 axles
• Largest LCD on the market dims for night driving
• No levelling
• Does not interfere with ABS brakes
• Power saving mode
• The only 100% truly proportional after market electric brake controller which gives you precision control over your trailer brakes

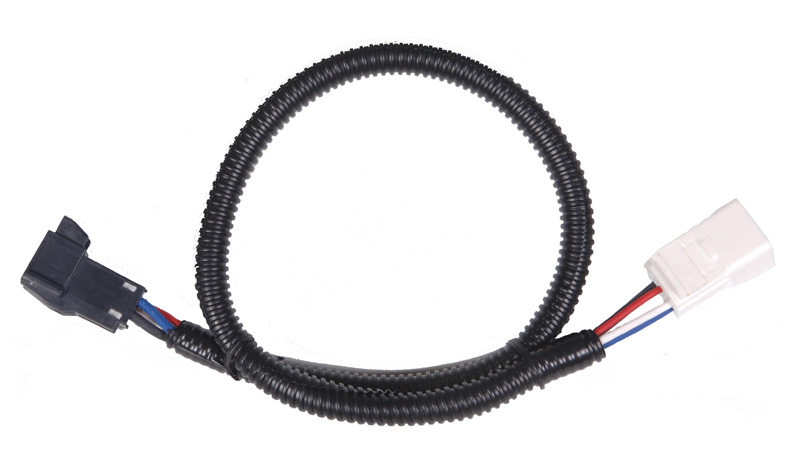

• Wiring harnesses available for USA manufactured tow vehicles equipped with tow packages

Brake System Diagnostics:

• Dead short detection
• High current detection
• Total amp readout
• Trailer unplugged
• Sensor unplugged

How does hydraulic over electric work?

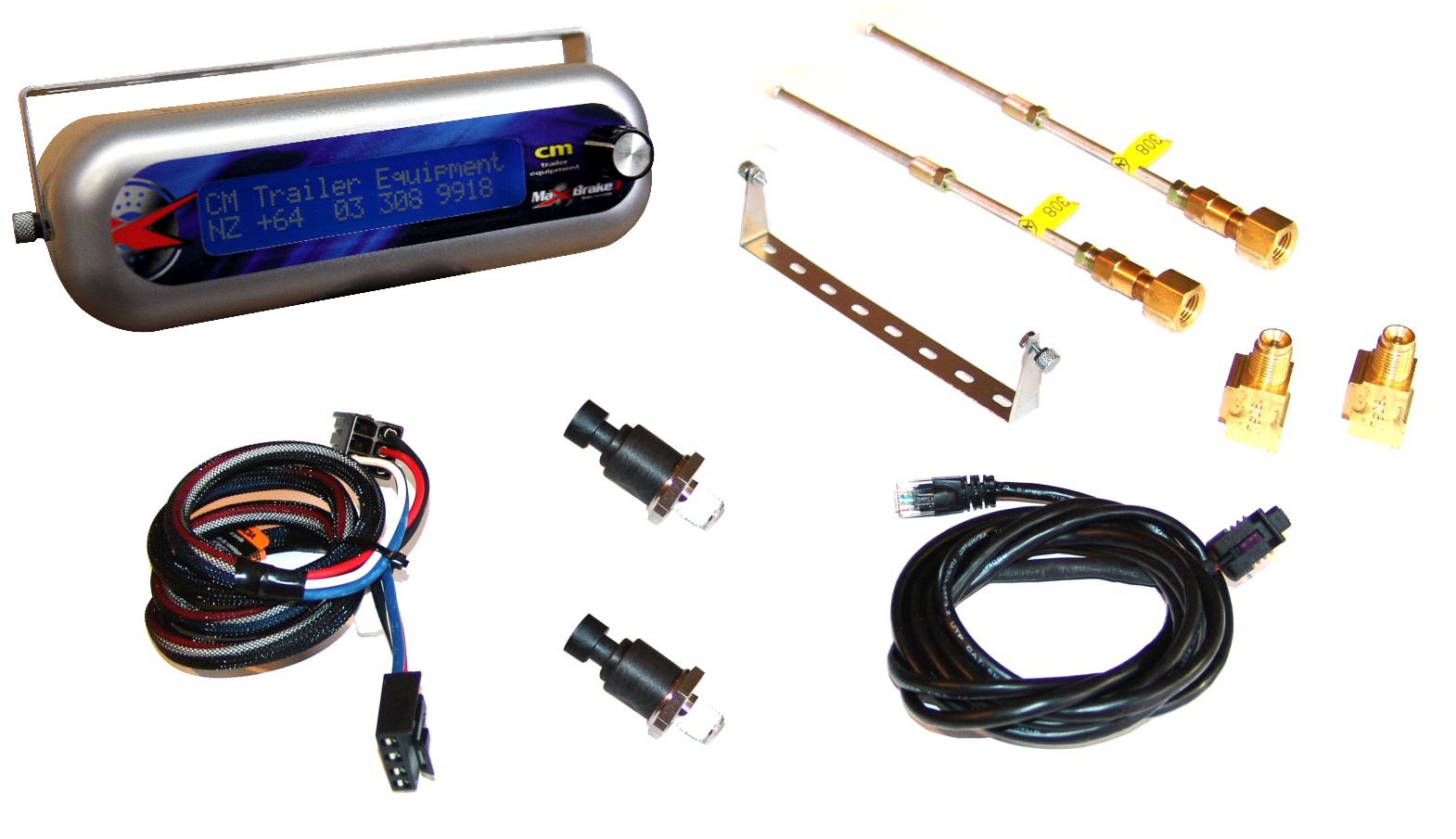

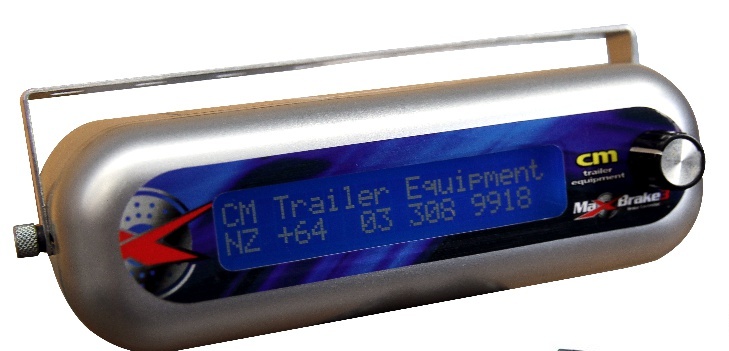

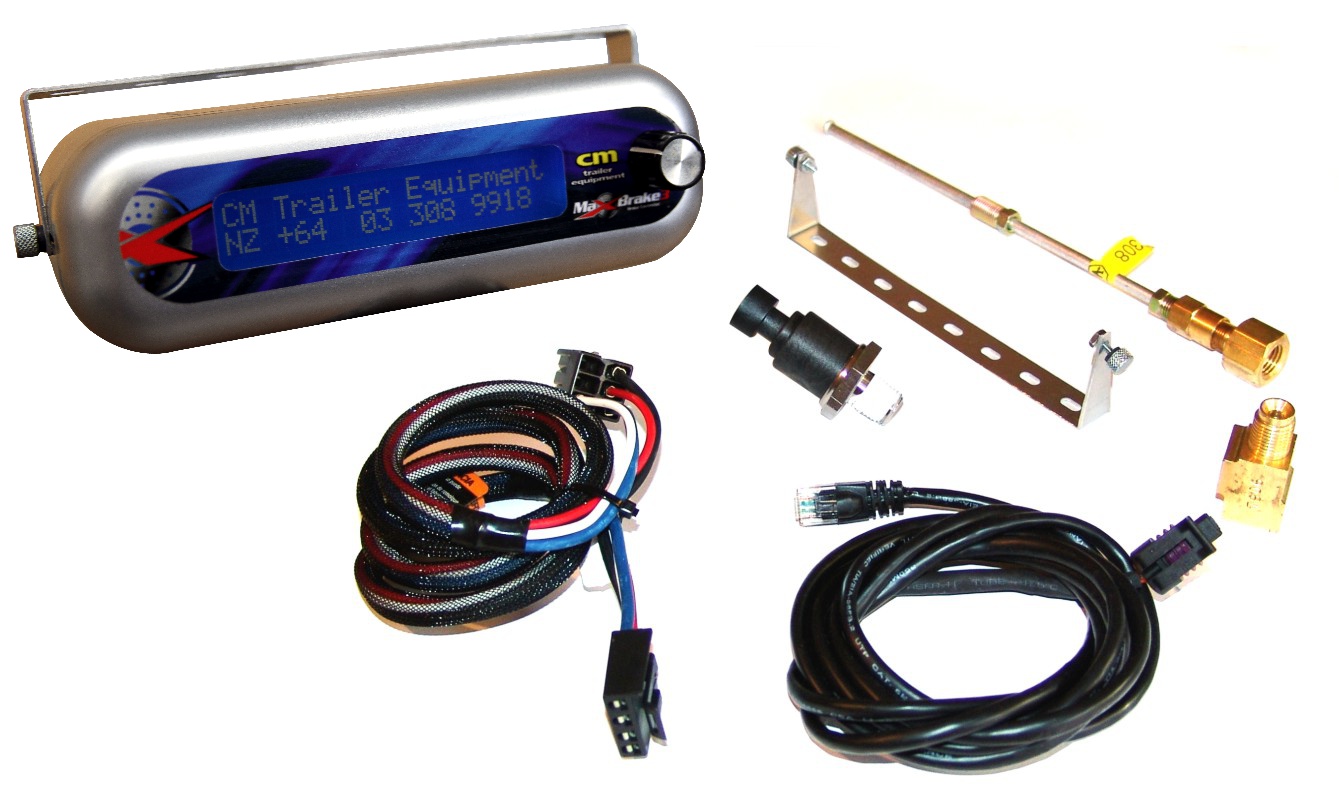

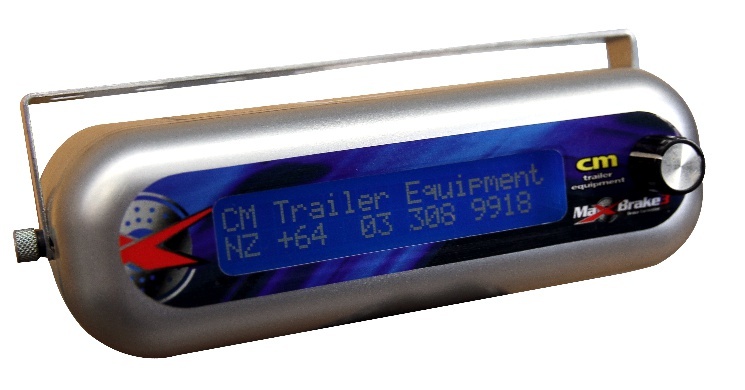

The MaxBrake3 controller uses pressure sensors installed directly at the vehicle master cylinder to monitor the vehicle brake pressure. It is easy to install the pressure sensors and in-cab controller without any special tools.
The pressure sensor does not affect ABS brake performance. There is no brake line to run into the vehicle cab. Install wiring and calibrate the MaxBrake3 to your pedal once and the vehicle installation is complete. No levelling is required. MaxBrake3 is compatible for use with all tow vehicles with air or hydraulic brake systems and uses the vehicles hydraulic or air pressure to control trailer brake systems including electric drum brakes and all electric/hydraulic systems up to four axles. MaxBrake3 responds to how hard you press the brake pedal...A little, a lot or anywhere in between. With MaxBrake3 your truck and trailer always brake together as one, at any speed, even in reverse. MaxBrake3 delivers maximum braking power instantly for serious towing.

The People´s Choice in Braking...Safe Braking at its Best!

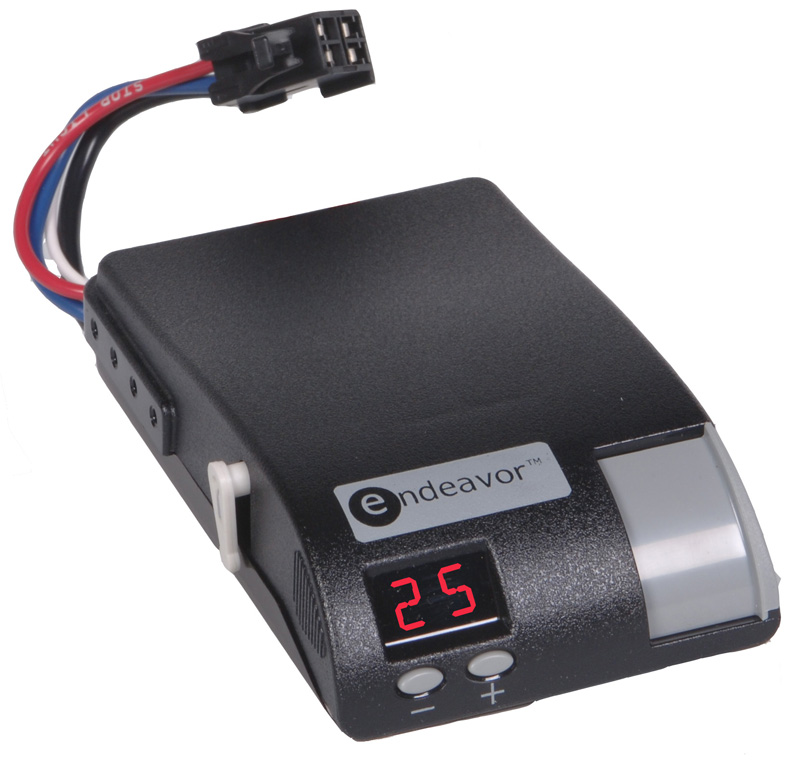

The Endeavor™ is the most popular of the Hayes brake controllers. This controller has the ability to sense deceleration
of the tow vehicle, which provides premium braking. This controller is equipped with a digital display allowing you to
select percent of power, voltage, or current. The Endeavor is equipped with a microprocessor allowing it to save all your
settings. The smart controller which allows for several diagnostic tools to help you in your braking needs.

• Digital Inertia controller
• Quik-Connect feature
• Easy to use
• Illuminates trailer lights when using manual braking
• Handles up to 4 axles
• Display reads current, percent of power, and voltage
• Power boost (turn-on): 15%, 20%, 25%
• Troubleshooting:
• Current limit / Short circuit / No connection / Hazard flash / Blue fault wire
• For use with electric and electric over hydraulic braking systems
• Lifetime limited warranty
• Quick reference card included
• Designed for use with the Quik-Receiver Mounting Sleeve

TAKING INNOVATION TO A WHOLE NEW LEVEL

• The P3 is the industry's most advanced trailer brake control.
• A truly proportional braking system, P3 has several added features, making it the standard for electric trailer brake controls.
• A distinct, easy to read LCD display with multiple screen colour options.
• 'Up-front' controls provide easy access to all P3 features.
• Easy to understand diagnostics show output current, battery/brake/output voltage
• A 'flashing red' warning system alerts user to 'No Trailer Brake' situations.
• Select electric over hydraulic or Electric trailer brake mode.
• 'The Original Boost' feature allows for different levels of customised braking.
• Compact, dash-hugging design.
• Unique, easy to use clip mounting system.
• Quick disconnect feature for easy storage.
• Electric trailer brake control for up to 4 braking axles.
• Limited lifetime warranty (some conditions apply).

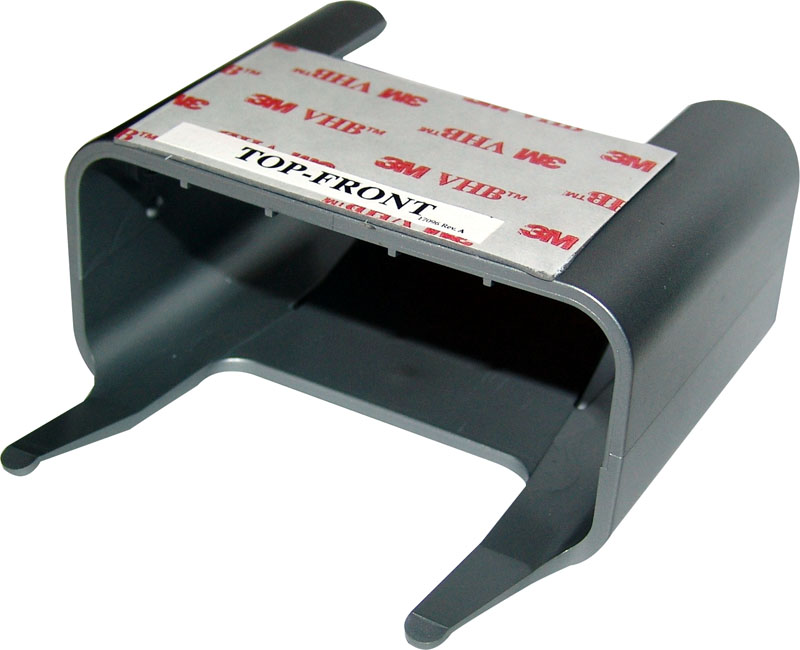

The “Quik-Receiver” Brake Controller Mounting Sleeve with VHB (very high bonding) tape. This uniquely designed brake controller mounting accessory provides for quick, easy, brake controller installation - anywhere from -35 to +90 degrees attitude.

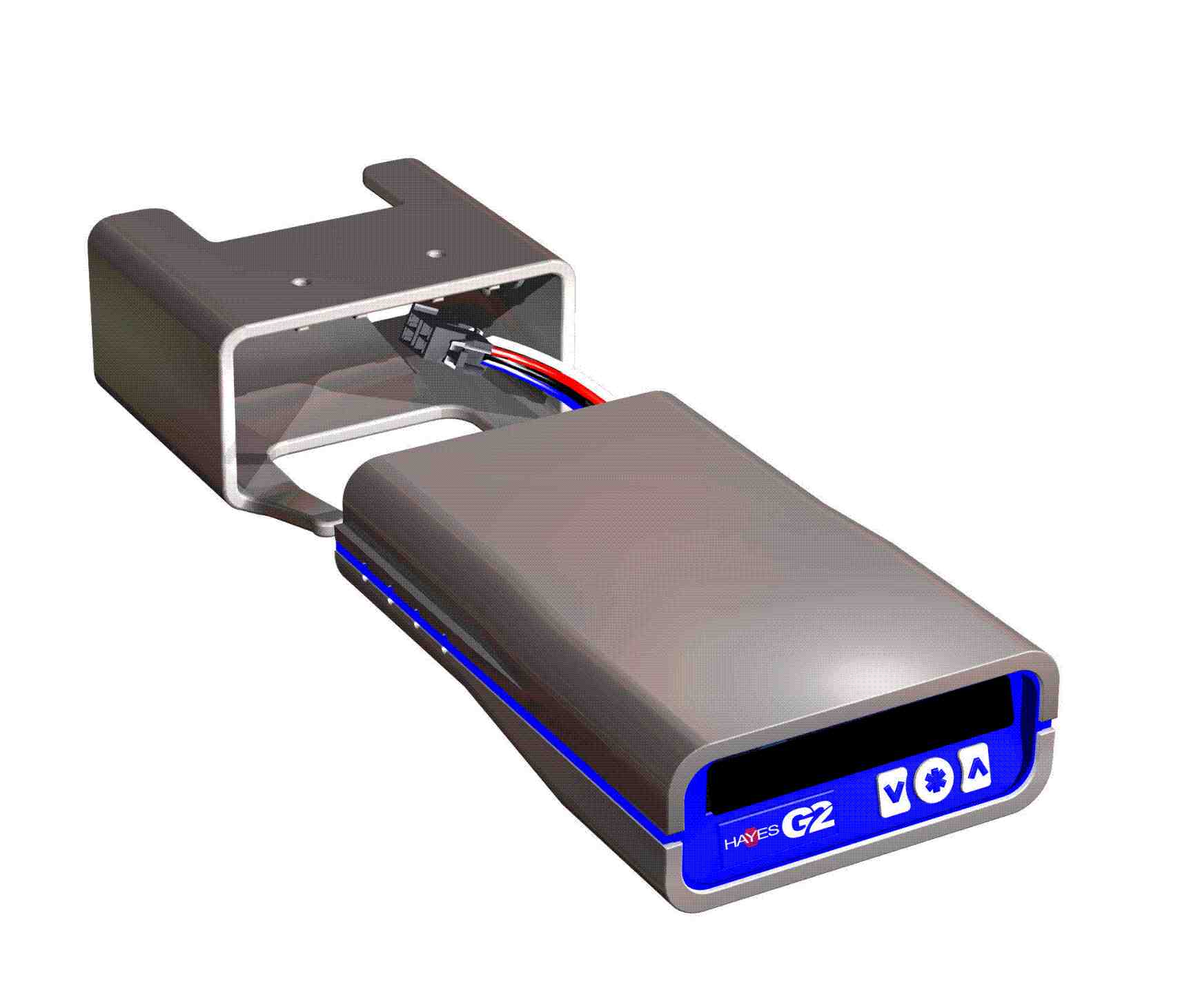

The “Quik-Receiver” is designed for use with Hayes digital brake controller models Endeavor and self leveling G2 (G2 is supplied complete with this sleeve).
