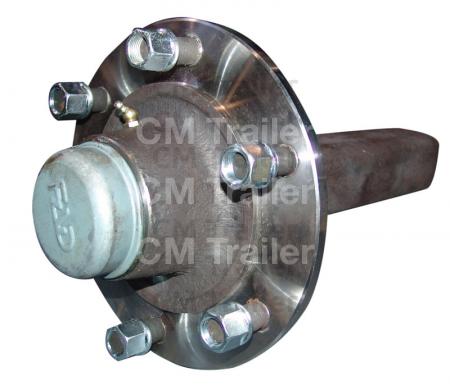

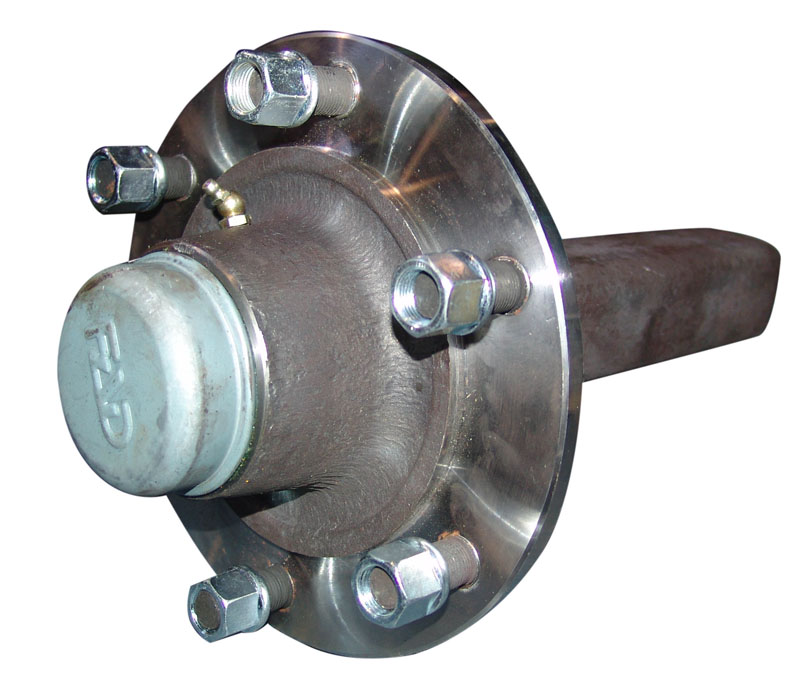

These hubs & stubs are ideal for heavy duty and off road applications.
The 3000kg hubs are machined from hot forged steel; ensuring they will endure even the toughest application.
All axles are machined from medium tensile steel.
You are here:
These hubs & stubs are ideal for heavy duty and off road applications.
The 3000kg hubs are machined from hot forged steel; ensuring they will endure even the toughest application.
All axles are machined from medium tensile steel.

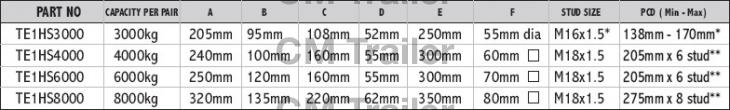

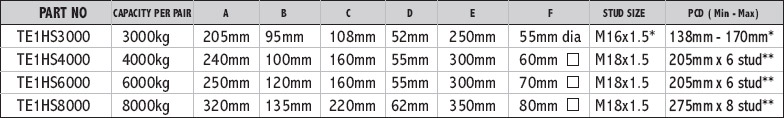

PART NO |
A |
B |
C |
D |
E |
F |
STUD SIZE |
PCD |
TE1HS3000 |
205mm |
95mm |
108mm |
52mm |
250mm |
55mm dia |
M16x1.5* |
138mm – 170mm* |
TE1HS4000 |
240mm |
100mm |
160mm |
55mm |
300mm |
60mm ■ |
M18x1.5 |
205mm x 6 stud** |
TE1HS6000 |
250mm |
120mm |
160mm |
55mm |
300mm |
70mm ■ |
M18x1.5 |
205mm x 6 stud** |
TE1HS8000 |
320mm |
135mm |
220mm |
62mm |
350mm |
80mm ■ |
M18x1.5 |
275mm x 8 stud** |
* TE1HS3000 are blank hubs. If you require these drilled and studded, specify PCD. Non-standard studs can be fitted at extra cost.
** TE1HS4000/TE1HS6000/TE1HS8000 are available only pre–studded as shown. Non-standard studs can be fitted at extra cost.

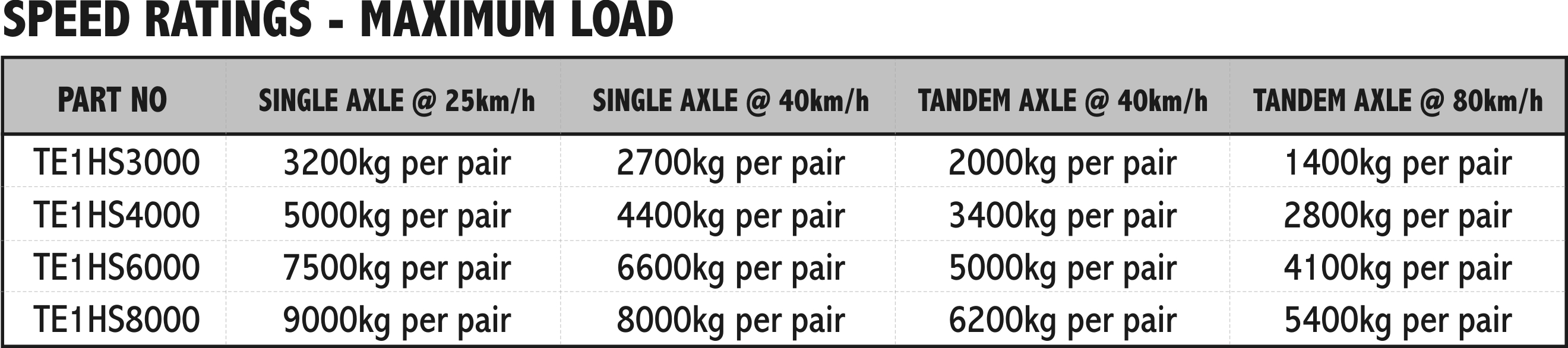

SPEED RATINGS – MAXIMUM LOAD
PART NO |
SINGLE AXLE @ 25km/h |
SINGLE AXLE @ 40km/h |
TANDEM AXLE @ 40km/h |
TANDEM AXLE @ 80km/h |
TE1HS3000 |
3200kg per pair |
2700kg per pair |
2000kg per pair |
1400kg per pair |
TE1HS4000 |
5000kg per pair |
4400kg per pair |
3400kg per pair |
2800kg per pair |
TE1HS6000 |
7500kg per pair |
6600kg per pair |
5000kg per pair |
4100kg per pair |
TE1HS8000 |
9000kg per pair |
8000kg per pair |
6200kg per pair |
5400kg per pair |
