NOTE: When mounting springs above RHS axle beam a support base plate,
Part No. TE197SBP must be used. Failure to do so can cause spring leaf breakage.

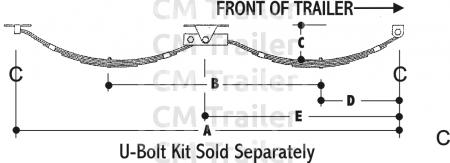

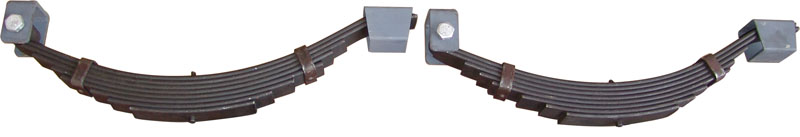

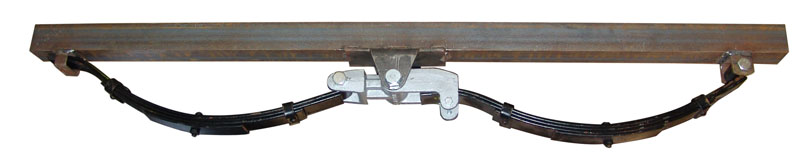

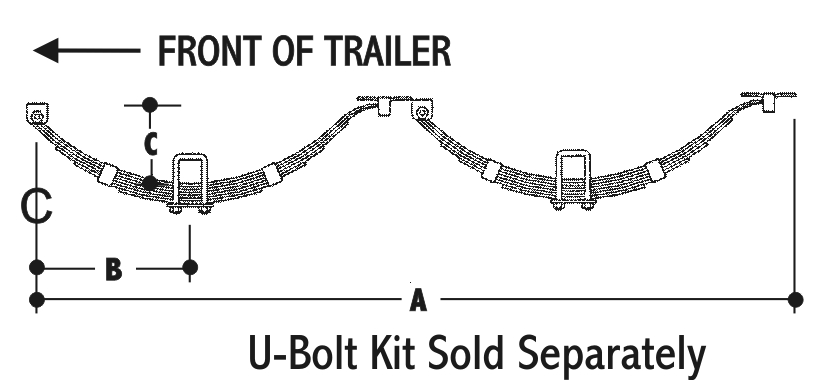

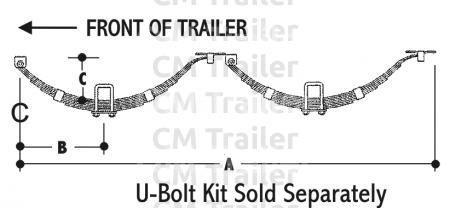

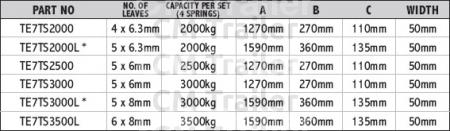

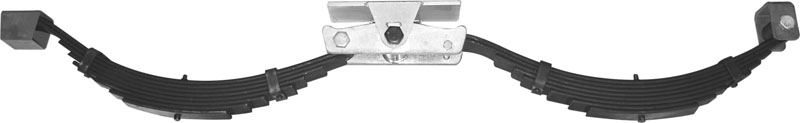

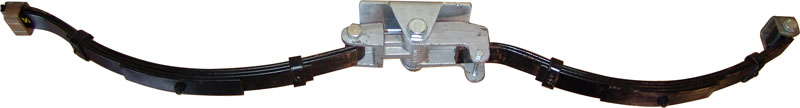

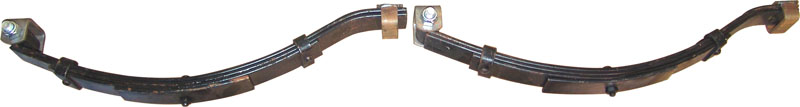

Non rocker-equalising tandem springs are the economy option for setting up a tandem wheeled trailer. CM recommend using
rocker equalisers. See chart above regarding performance.
Please note that tandem springs & suspensions without load sharing rocker-equalisers must be derated by 25% to avoid
bearing, stub axle or suspension failure caused by periodic point overloading as shown in the chart at top of this page.

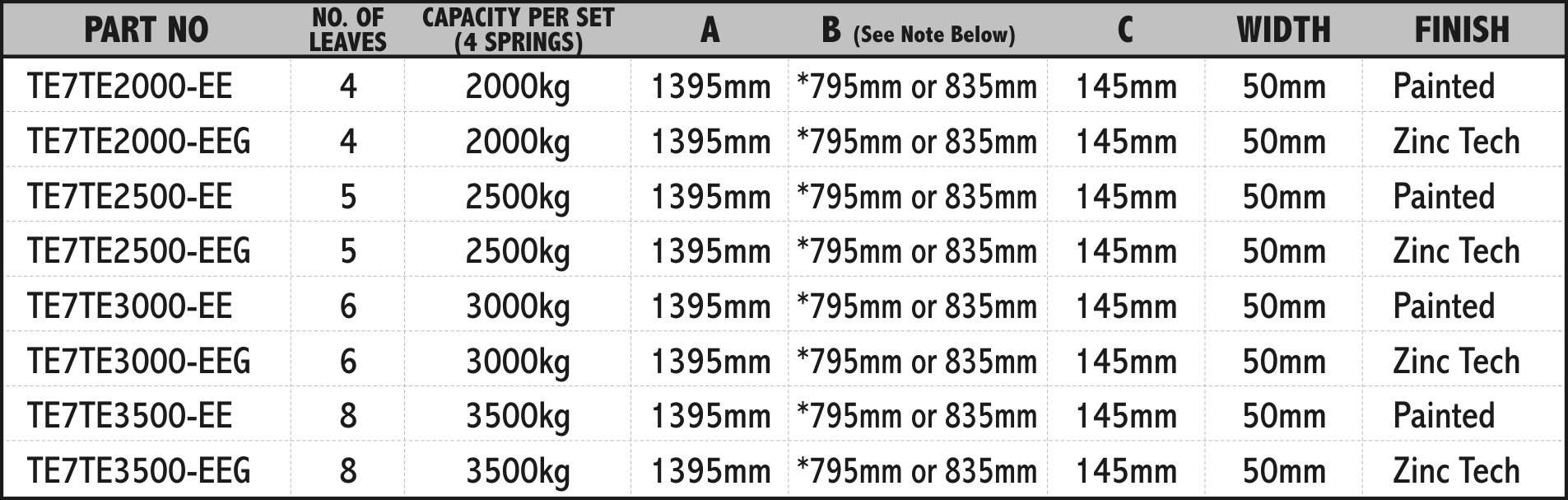

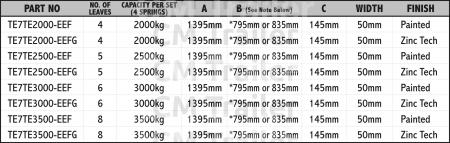

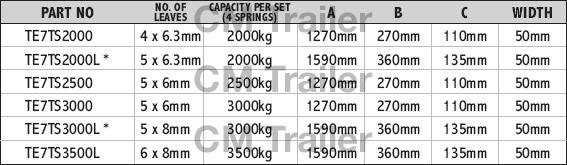

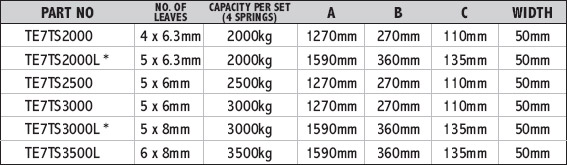

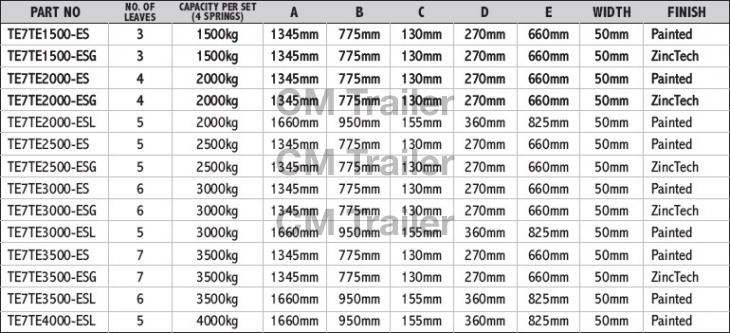

* NOTE 1: This long series is available as parts. Ideal for when larger diameter tyres are used.
