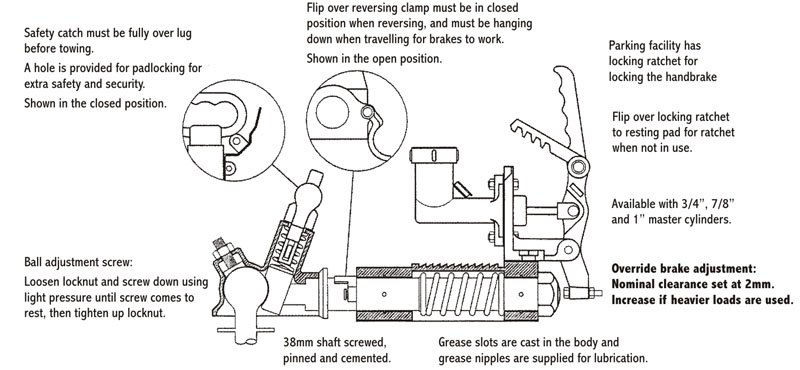

CM hydraulic override couplings have a heavy 38mm S1040 mainshaft, domed shaft for smoother braking. These couplings are available with either standard or heavy duty damper springs. Padlocking facility for security.
Grease nipples are fitted for servicing and the head-mainshaft rotates through 360 to distribute the lubricant during servicing.
Attractively finished in zinc plating or alternatively primer oxide undercoated.
You are here:
Couplings Braked

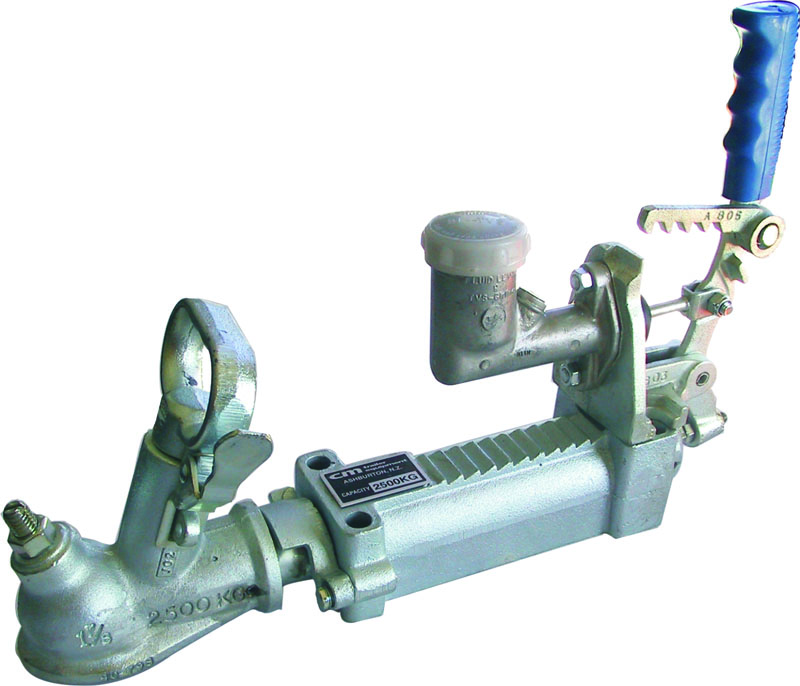

HYDRAULIC OVERRIDE COUPLINGS

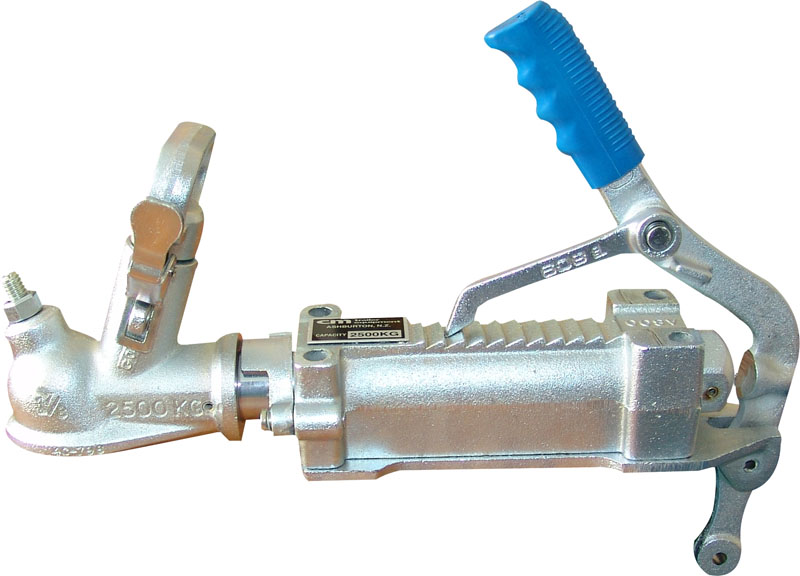

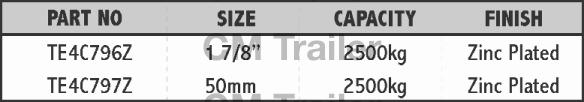

MECHANICAL OVERRIDE COUPLINGS

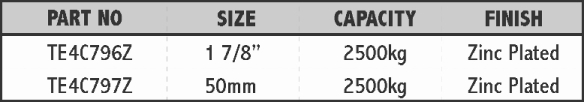

Mechanical override couplings supplied complete with base plate. Available zinc electroplated or primer oxide undercoated.
75mm RING OVERRIDE COUPLING
TE4C795
- ADR rating of 2270kg.
- The head rotates 360.
- 40mm thick ring section.

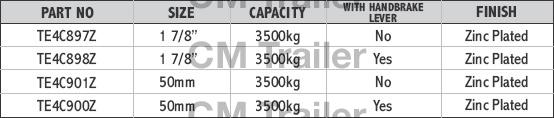

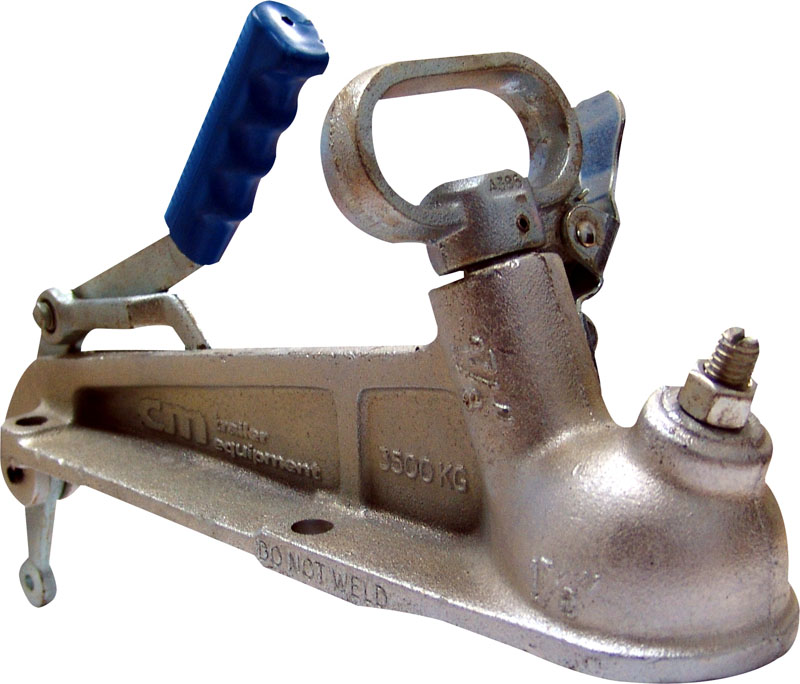

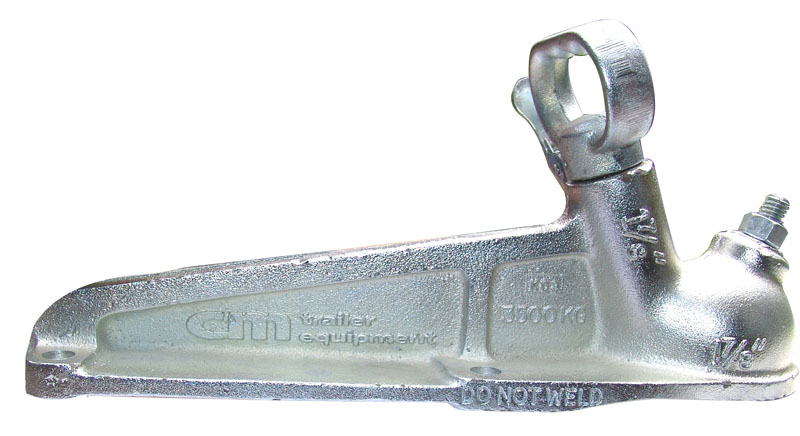

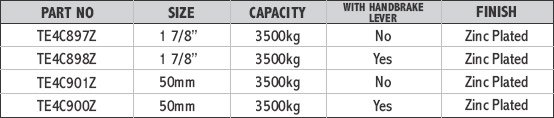

HEAVY DUTY TRAILER COUPLINGS
TE4C897Z
3500kg heavy duty SG Iron Coupling.
Tested and certified for on-road use.
- Used in conjunction with electric drum brakes or electric / hydraulic brakes.
- Mounting bolt pattern is the same as our override couplings.
- Padlocking facility for security.
- Available with or without handbrake lever.
- Finished in attractive zinc electroplating.
- CM also stock 3500kg rated towballs with a 1” shank in both 1 7/8” and 50mm.
SUPER HEAVY DUTY 6000KG TRAILER COUPLING
TE4C960
This coupling has been tested to comply with ADR 62/01-12.3.3.i - test report number 3037779 dept Civil Eng University of Queensland
- D value: 5

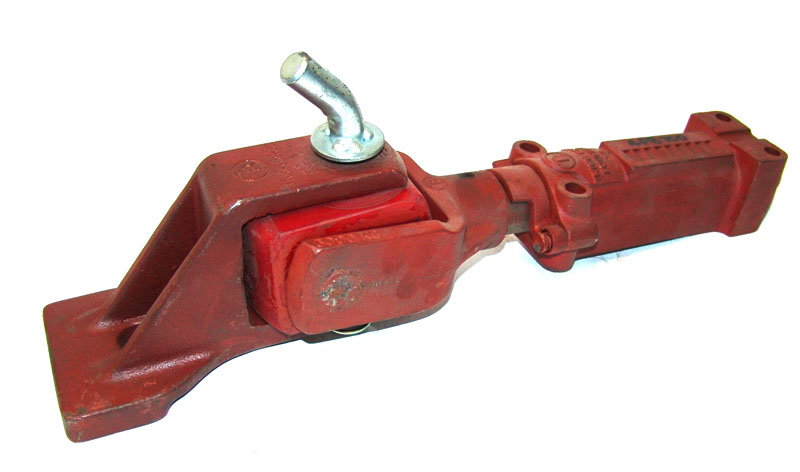

OFF ROAD POLYBLOCK COUPLINGS
These off road polyblock couplings are designed and tested to withstand the toughest of conditions and are suitable for all terrain. The polyurethane block is fitted with hardwearing nylon bushes for longer life. The towbar mounting bracket is cast in superior austempered ductile iron and bolts onto the vehicle towbar. The body is the same unit as used in our proven override body.
Available as a braked/swivel coupling, suitable for both hydraulic and mechanical brake systems. A lighter body spring is available for lighter load applications and is available also as a swivel only/non-braked unit.
