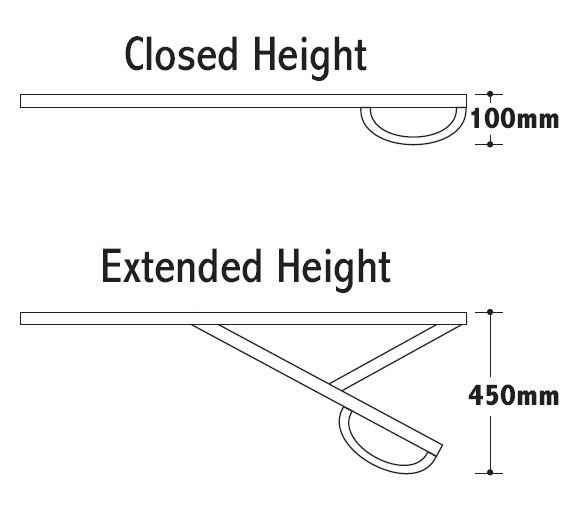

Caravan parking legs with twin outrigger and complete with crank handle.
Search
You are here:
Stands & Accessories

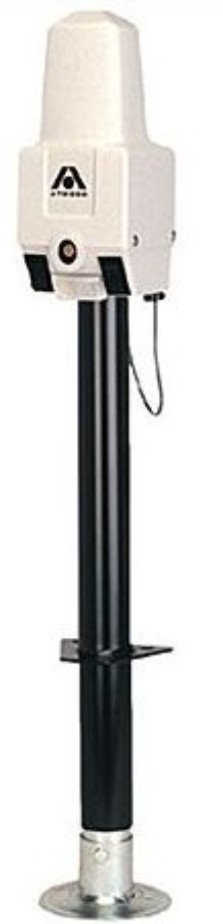

ELECTRIC A-FRAME JACK
TE9JW1130
The convenience of push button operation takes the exertion out of cranking - effortlessly raising or lowering trailers with complete control.
These jacks are permanently lubricated and trouble-free to use.
They require little maintenance and use a rugged 12v electric gear motor that has been well proven over years of use under adverse conditions.
- Lift capacity 1130kg maximum.
- 12 Volt
- Push button to lift or lower.
- Manual override crank handle.
- Includes courtesy light
DIAGRAM:
A = 257mm
B = 374mm
Retracted = 631mm
Extended dimensions = 995mm

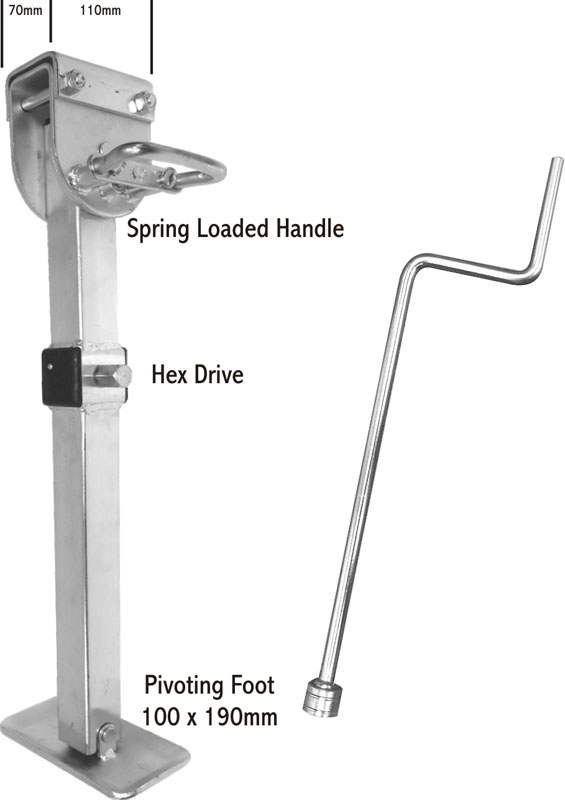

UNDERBODY LANDING LEGS
Underbody landing legs with locking pin swing away through 180 so legs fold up in either direction. Pivoting foot for uneven surfaces. Hex wind down leg.

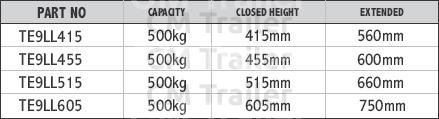

TE9LLH
Wind Down Handle
