Extendable foot.
Includes Mounting Bracket.
We stock spare parts for our NZ manufactured jockey wheels and machinery stands. Refer to the spare parts section in our 2016 Catalogue.

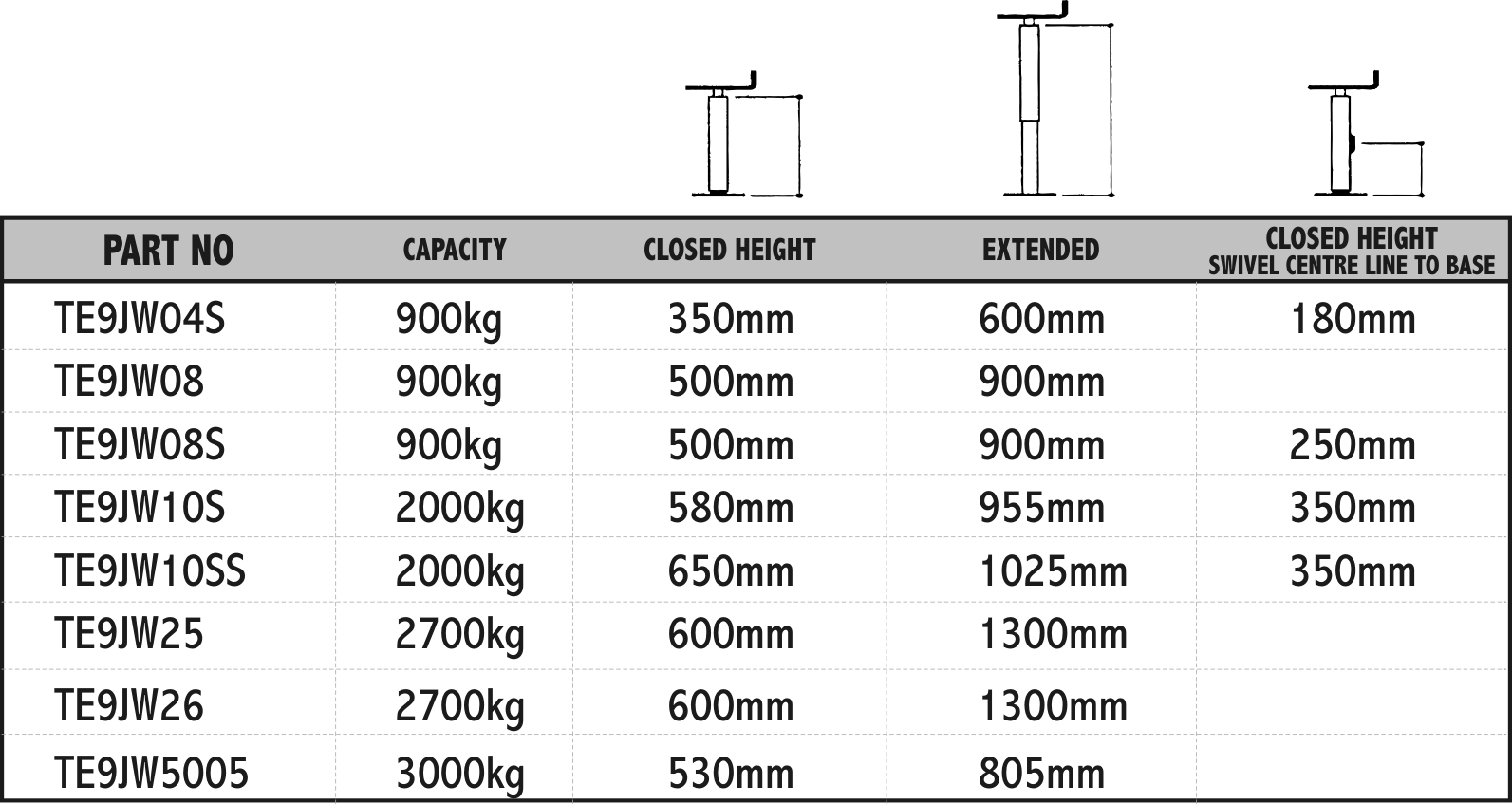

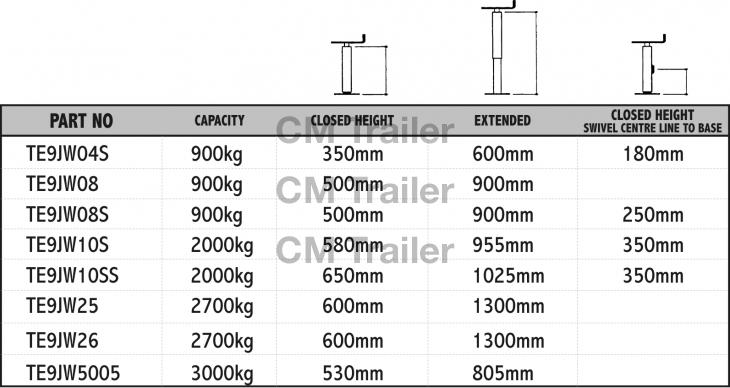

PART NO |
CAPACITY |
CLOSED HEIGHT |
EXTENDED |
CLOSED HEIGHT SWIVEL CENTRE LINE TO BASE |
TE9JW04S |
900kg |
350mm |
600mm |
180mm |
TE9JW08 |
900kg |
500mm |
900m m |
|
TE9JW08S |
900kg |
500mm |
900mm |
250mm |
TE9JW10S |
2000kg |
580mm |
955mm |
350mm |
TE9JW10SS |
2000kg |
650mm |
1025mm |
350mm |
TE9JW26 |
2700KG | 600mm | 1300mm |
|
TE9JW5005 |
3000kg |
530mm |
805mm |
|
|
|
|
|
|
50mm RHS Side Bracket.
Bracket is 100mm long with 13mm holes
Bracket is 65mm long with 17mm holes

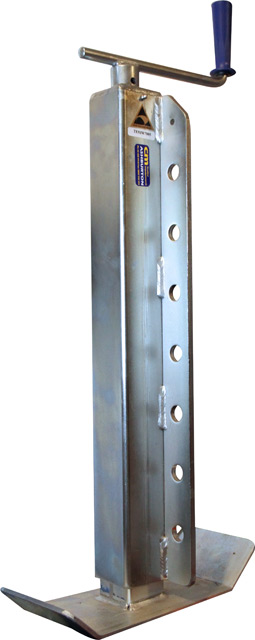

Rugged box lifter jack with full length adjustment and large foot
All swing up jockey wheels are supplied standard with a 2 bolt bracket.
Standard
Heavy Duty
Does not fit standard duty jockey wheels and stands.
Zinc plated.

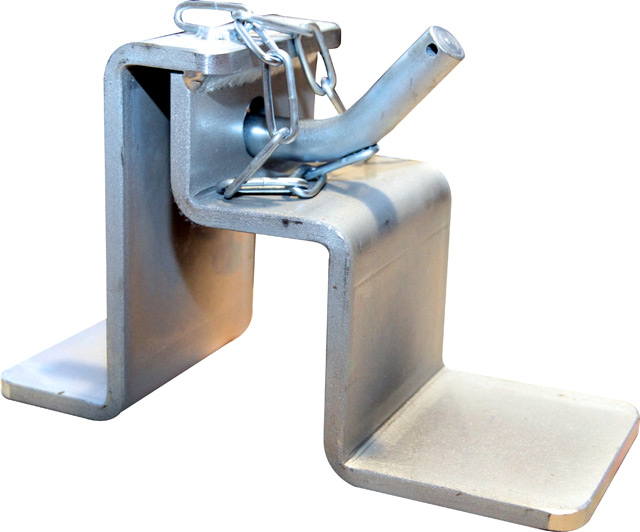

Bracket works with TE9JW7005 but available separately.
If you want to weld on a bracket prior to galvanising please request the weld on option.
Supplied separately.
Does not fit standard duty Jockey Wheels and Stands
CM stock a range of premium quality jockey wheels and machinery stands, most of which are made in Christchurch. Designed to suit NZ conditions, they are all covered by the manufacturer's quality guarantee. We can also make specials to order.

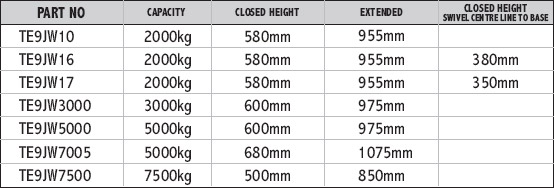

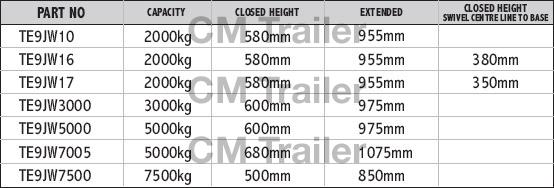

PART NO |
CAPACITY |
CLOSED HEIGHT |
EXTENDED |
CLOSED HEIGHT SWIVEL CENTRE LINE TO BASE |
TE9JW10 |
2000kg |
580mm |
955mm |
|
TE9JW16 |
2000kg |
580mm |
955mm |
380mm |
TE9JW17 |
2000kg |
580mm |
955mm |
350mm |
TE9JW3000 |
3000kg |
600mm |
975mm |
|
TE9JW5000 |
5000kg |
600mm |
975mm |
|
TE9JW7005 |
5000kg |
680mm |
1075mm |
|
TE9JW7500 |
7500kg |
500mm |
850mm |
U-BOLT MOUNTING PLATE
U-BOLT (2 required)
