Brake Hoses & Fittings

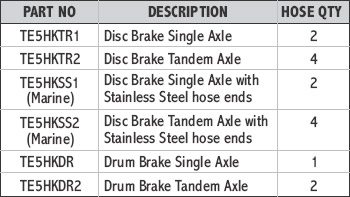

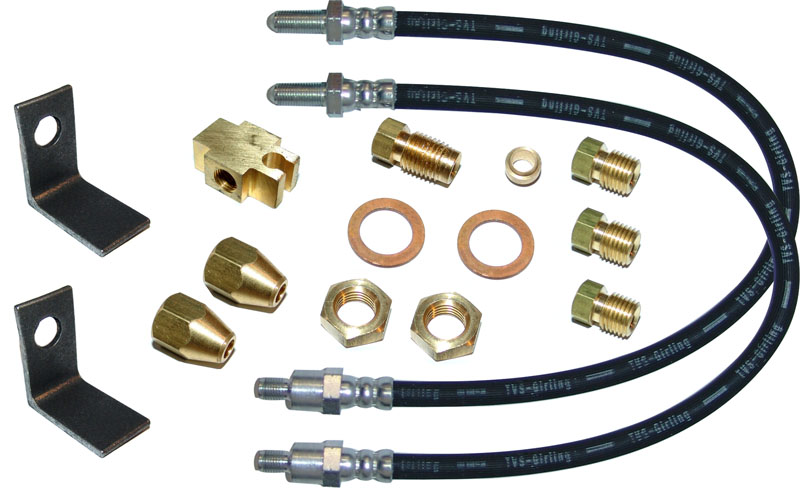

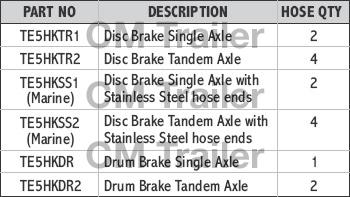

HOSE & FITTING KIT
|
PART NO |
DESCRIPTION |
HOSES |
|
TE5HKJ1 |
Disc Brake Single Axle 45° End suits Deemaxx & Kodiak calipers |
2 |
|
TE5HKJ2 |
Disc Brake Tandem Axle 45° End suits Deemaxx & Kodiak calipers |
4 |
|
TE5HKJ3 |
Disc Brake Triple Axle 45° End suits Deemaxx & Kodiak calipers |
6 |
|
TE5HKTR1 |
Disc Brake Single Axle |
2 |
|
TE5HKTR2 |
Disc Brake Tandem Axle |
4 |
|
TE5HKTR3 |
Disc Brake Triple Axle |
6 |
|
TE5HKSS1 (Marine) |
Disc Brake Single Axle with stainless braided hoses |
2 |
|
TE5HKSS2 (Marine) |
Disc Brake Tandem Axle with stainless braided hoses |
4 |
|
TE5HKDR |
Drum Brake Single Axle |
1 |
|
TE5HKDR2 |
Drum Brake Tandem Axle |
2 |

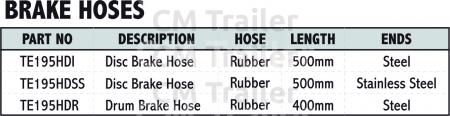

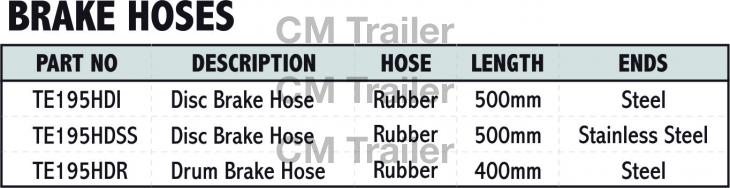

BRAKE HOSES
Stainless Steel braided hoses have a clear plastic cover and stainless steel fittings.
|
PART NO |
DESCRIPTION |
HOSE |
LENGTH |
ENDS |
FITTING |
FITTING |
|
TE195HDR |
Drum Brake Hose |
Rubber |
400mm |
Steel |
A |
D |
|

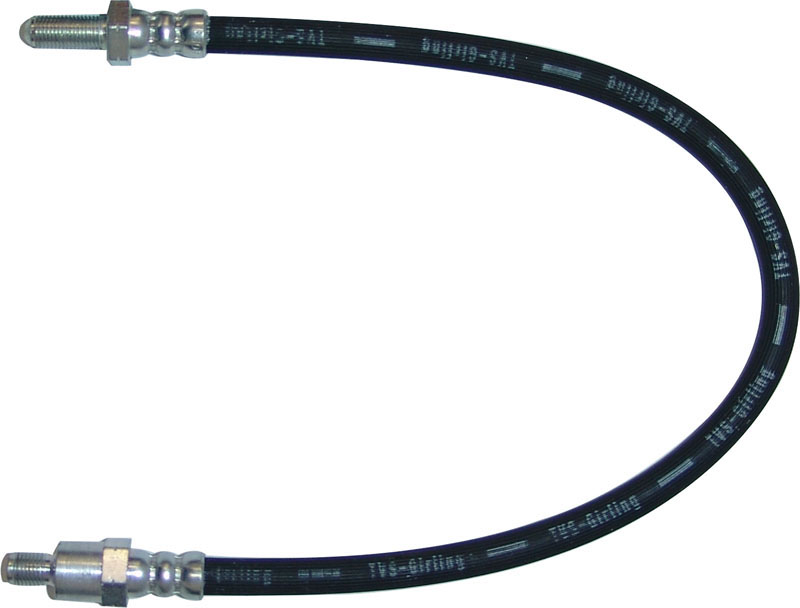

TE195HDI |
Disc Brake Hose |
Rubber |
500mm |
Steel |
A |
D |
|
TE195HDSS |
Disc Brake Hose |
Braided SS |
500mm |
Stainless Steel |
A |
D |
|
TE195HBANJO |
Banjo Brake Hose |
Rubber |
500mm |
Steel |
A |
C |
|
TE195HDJ |
Disc Brake Hose 45° End |
Rubber |
500mm |
Steel |
A |
B |

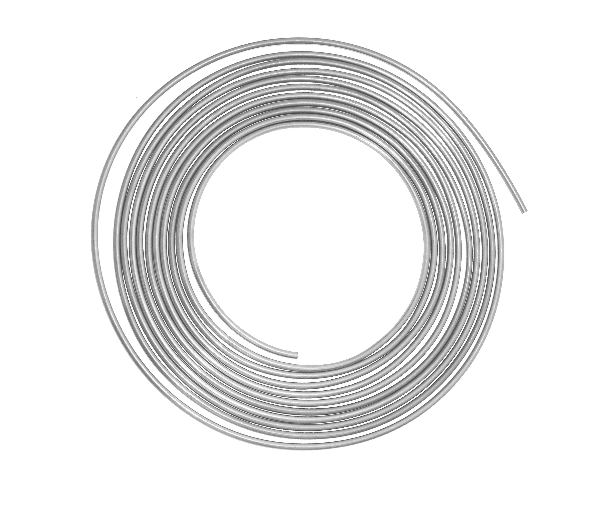

STEEL BUNDY TUBING
Zinc electroplated finish.
TE5HBUNDY3/16 : Cut to length
TE5HBUNDY-7.5 : 7.5m roll
TE5HBUNDY-30 : 30m roll

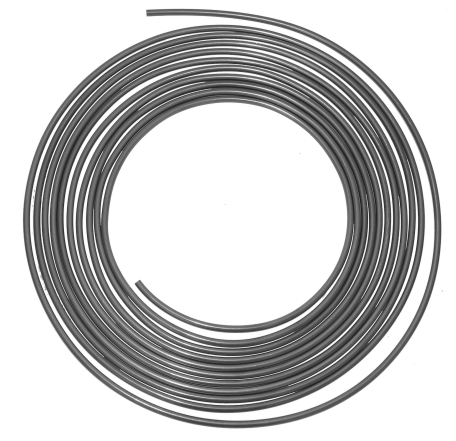

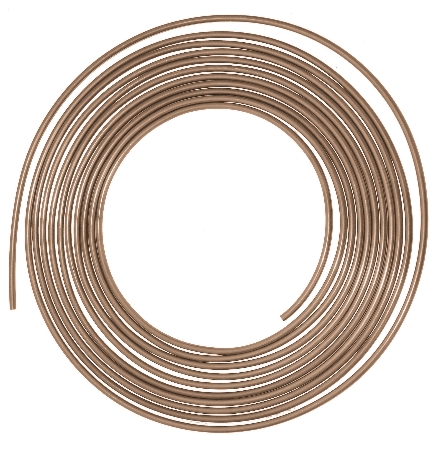

CUPRO-NICKEL TUBING
TE5HK1
A seamless 90% copper / 10% nickel automotive approved high-pressure brake line. Unlike copper, it won't harden and is superb to work with.
3/16" x 7.6 metre
MASTER CYLINDER ADAPTER/NUT
TE195MCA
3/8 inch SAE Adapter/Nut
3/16" BUNDYTUBE JOINER
TE195M6203
3/8" SAE female joiner with male tube nuts.

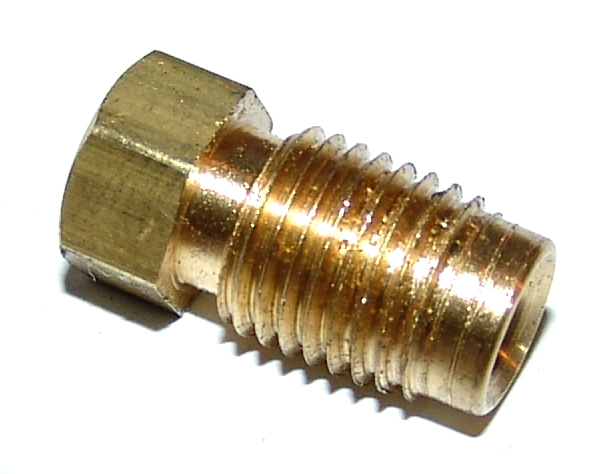

BRASS TUBE NUT 3/8” SAE x 3/4”
TE195BP1
3/8” SAE x 3/4” (l) overall. Fits 3/16” tubing.

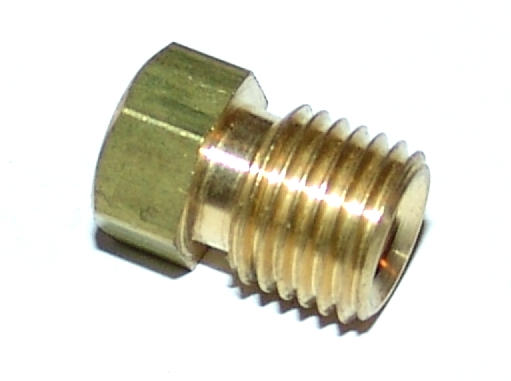

BRASS TUBE NUT 3/8” SAE x 9/16”
TE195P555
3/8” SAE x 9/16” (l) overall. Fits 3/16” tubing.

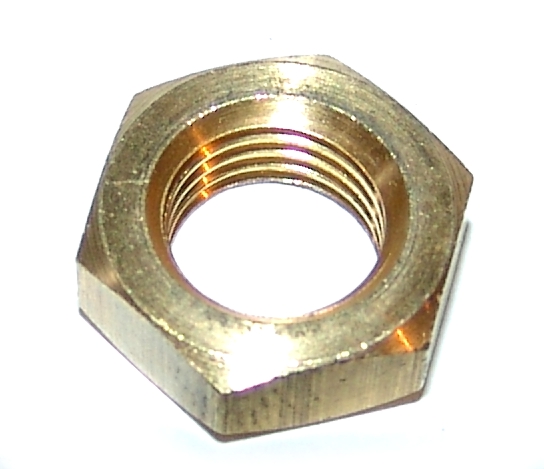

BRASS LOCK NUT
TE195LN
Fastens brake hose to chassis bracket. 3/8” SAE

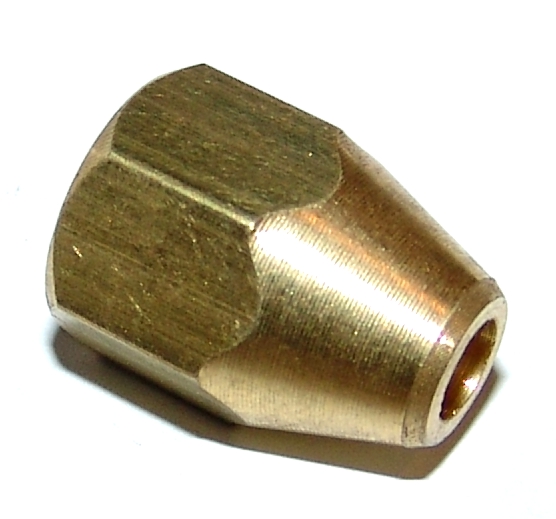

BRASS TUBE NUT 3/8” SAE x 11/16”
TE195BP9
3/8” SAE x 11/16” (l) overall. Fits 3/16” tubing.
STAINLESS STEEL TUBE NUT 3/8” SAE x 11/16”
TE195BP9S
3/8” SAE x 11/16” (l) overall. Fits 3/16” tubing.

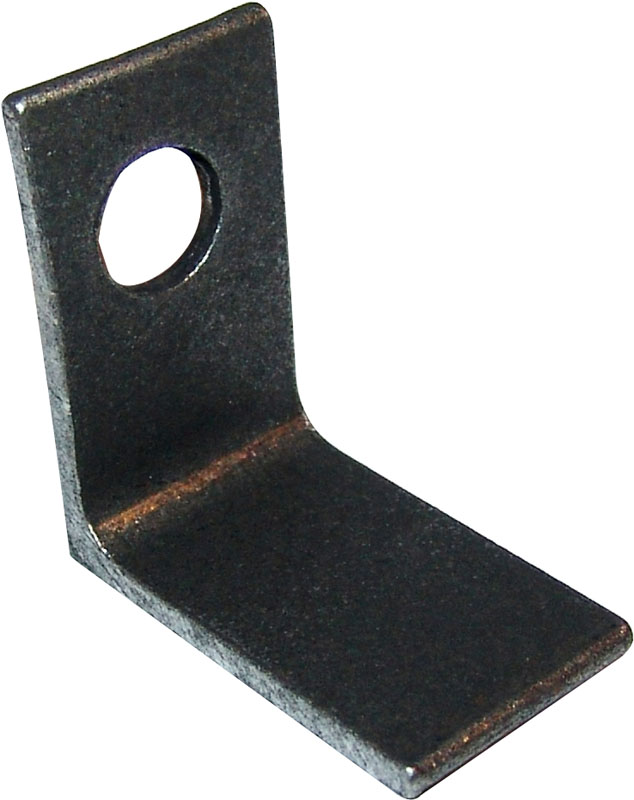

HOSE BRACKET
TE195LB
Hose bracket, welds to chassis.
Dimensions: 23mm (w) x 40mm (h)

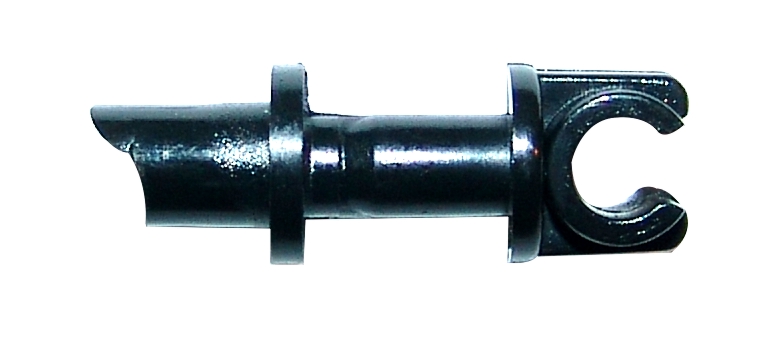

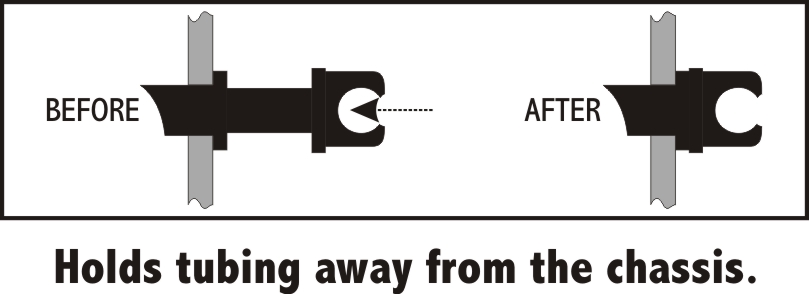

PLASTIC BUNDY TUBE CHASSIS CLIPS
Holds tubing away from the chassis
PLASTIC BUNDY TUBE CHASSIS CLIPS
TE5HBTC
TE5HBTCP
Drill a 6mm hole, slide in up to shoulder,
strike the head which drives the shank in,
riveting it in place.
PLASTIC BUNDY TUBE CHASSIS CLIP

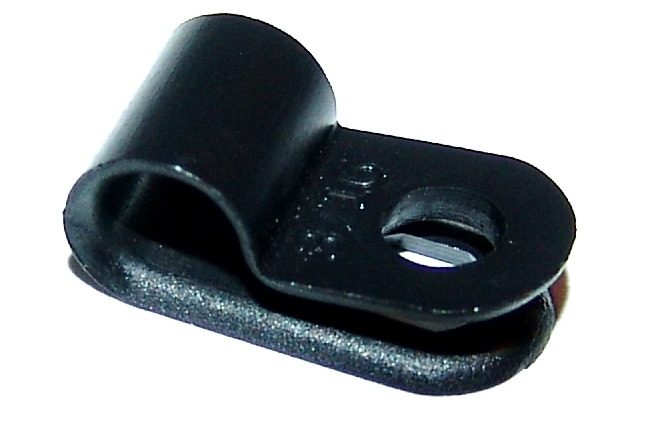

TE5HB01
Inside diameter: 5mm
Rivet Hole: 4.5mm

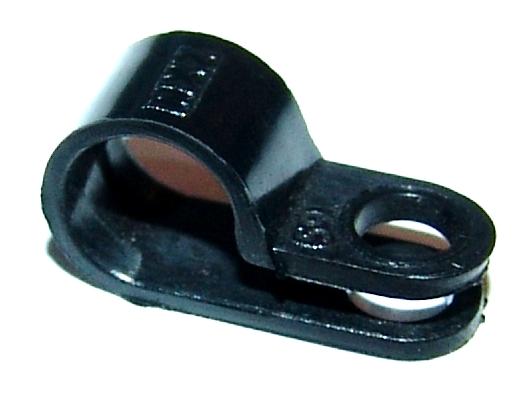

PLASTIC BUNDY TUBE CHASSIS CLIP
TE5HB02
Inside diameter: 6mm
Rivet hole: 3.5mm
HAND BRAKE

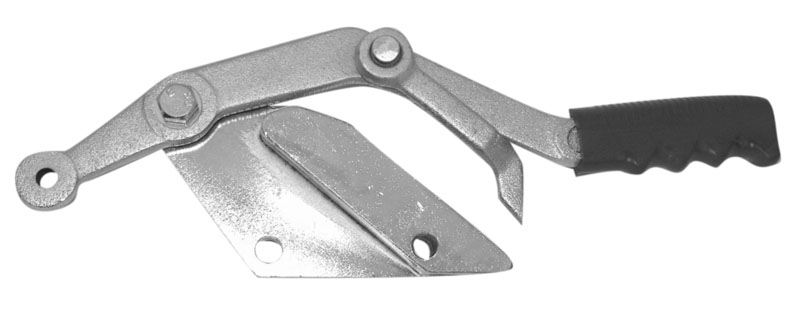

TE5M815
Side mounted bolt-on hand brake unit. For mounting on a vertical surface.
HAND BRAKE

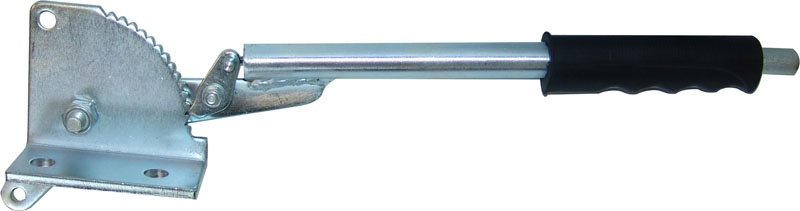

TE5M818
Side mounted bolt-on hand brake unit. For mounting on a horizontal surface.
HAND BRAKE

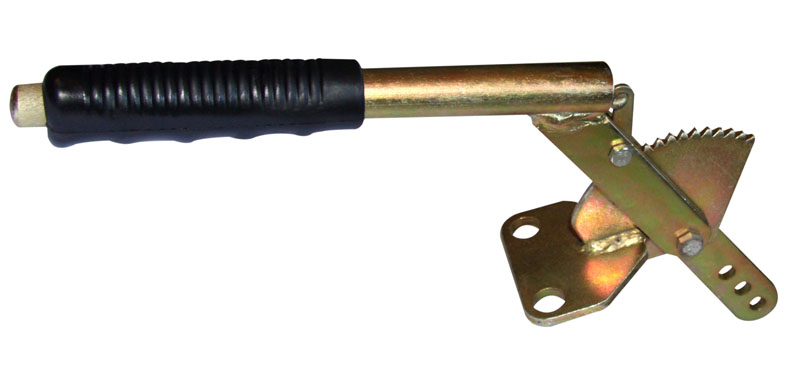

TE5M820
Centre mounted bolt-on hand brake unit. For mounting on a horizontal surface.

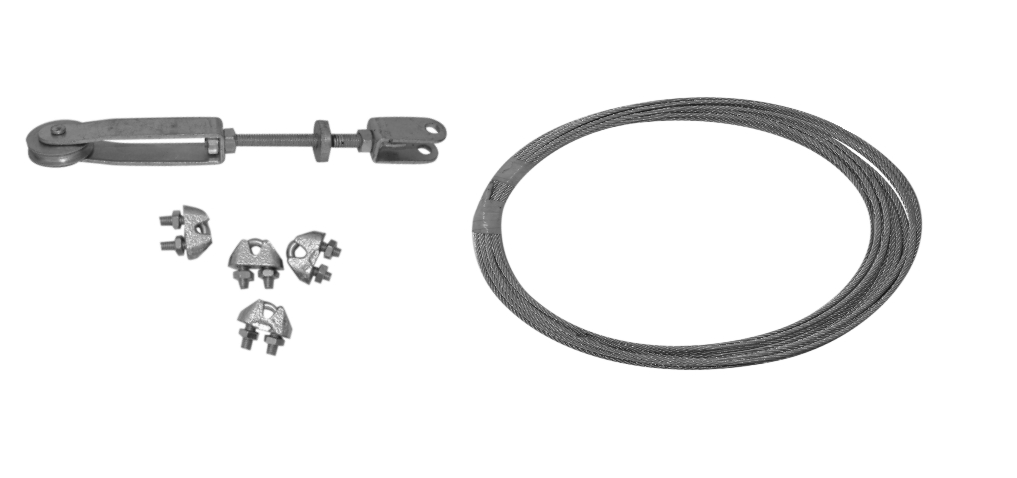

PARK BRAKE CABLE KIT
TE5MCK
Includes 9 metre x 4mm wire cable, 6 clamps and cable adjuster.

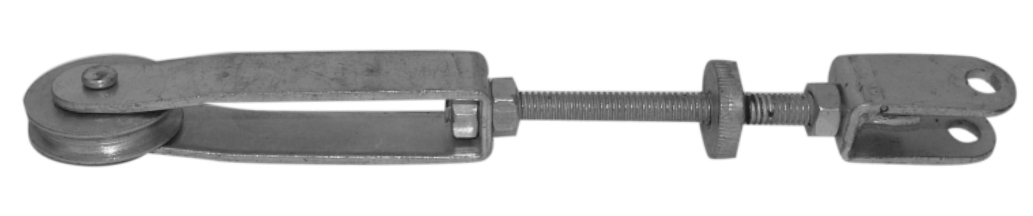

CABLE ADJUSTER & TURNBUCKLE
TE5M821
Galvanised body, stainless steel fastener and roller.

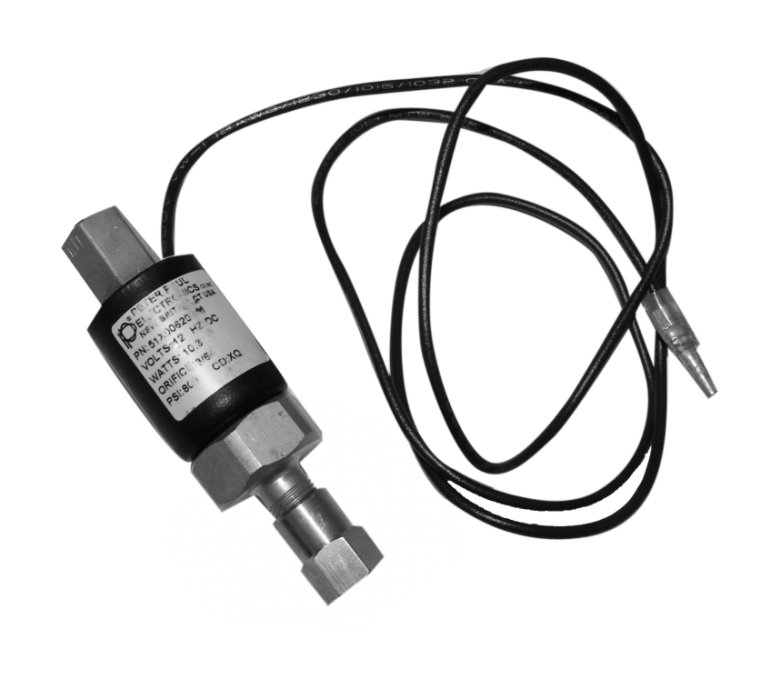

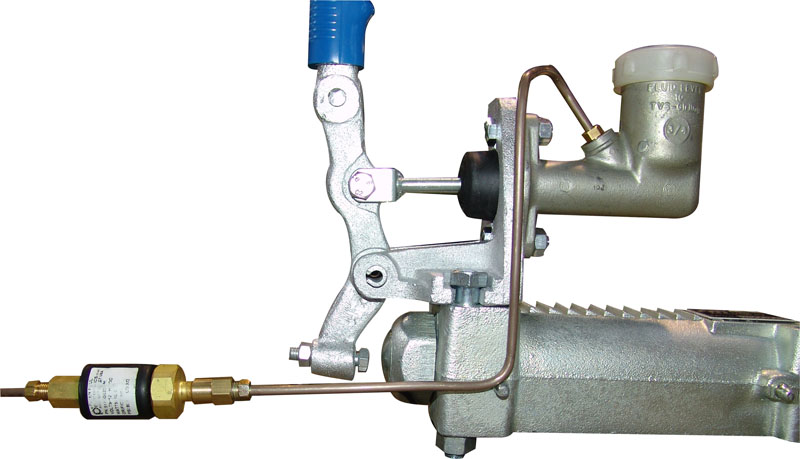

SOLENOID AUTO BACK-UP VALVE
TE5BV1
NO MORE HAVING TO FLIP THE REVERSE LATCH OVER!
Designed for use in conjunction with override brake systems, this solenoid valve prevents the brakes from locking on when reversing the vehicle. Simply plumbed into the master cylinder brake pipe and wired into the tow vehicle reversing lights, this normally open valve closes, preventing any line pressure to the brakes.
-
Easy to install.
-
12 volt.
-
3/16” SAE FIF inlet and outlet.
